體積	8.73 英寸 x 1.88 英寸 x 1.26 英寸（22.2 厘米 x 4.8 厘米 x3.2 厘米）
顯示屏	(8) LED 指示燈、同步 LED 指示燈
音頻	IntelliTone:微處理器控制的音頻文件，模擬：檢測到的音調發生器信號
控制	滾輪交換機，音量控制輪
音調檢測	檢測 IntelliTone? 數字信號用于定位、隔離和線對表  檢測模擬 SmartTone 信號 (500-1200 Hz) 和其它模擬音頻發生器。
音調發生器接口	主 Mod8 端口用于 UTP/STP 布線上所有四個線對的線對表
自動關機	靜止 1 小時后自動關閉

FLUKE測線儀操作步驟移步：http://www.i3803.com/archives/fluke-cexian.html

FLuke MT-8200-60 KIT英文原文：

IntelliTone digital toning technology:

• Ends cable location confusion, decisively rejects noise and false signals
• Locates cables on active networks, even when terminated at a switch
• Isolates cable and wiring within a bundle, despite cable bleed
• Confirms cable location, verifies continuity, and detects faults (opens, shorts, and reversed pairs) in one step

SmartTone? analog toning technology:

• Isolates individual wire pairs precisely by changing tone when shorted
• Effectively traces and locates voice, audio, and video cabling

Digital vs Analog

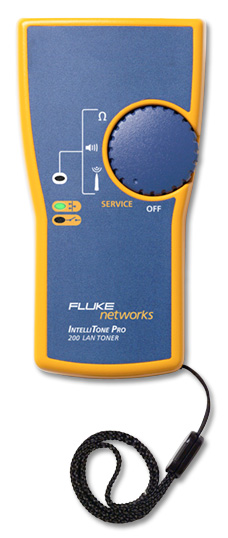

Only IntelliTone? Pro Toners and Probes offer the powerful combination of digital and analog technologies to resolve common infrastructure problems that arise during installing, maintaining, and changing of your network.

Digital and analog toning in one tool.
Today’s media networks are more diverse than ever.? Most buildings have a combination of telephone, twisted-pair data, coax, and security/alarm wiring.? Verifying proper routing and termination of this diverse set of cabling types requires tools optimized for different frequencies, connector types, and work environments.? Until now, no single tool has combined the right technologies to operate across all copper media types, and in all environments.? IntelliTone Pro changes that by combining cutting-edge digital and analog signaling to locate and verify virtually any copper cable, regardless of application or environment.

When to use digital
IntelliTone Pro’s digital encoded signal should primarily be used on high-grade data cabling (Cat 5e/6/6a), and in active network environments.? It operates at a high-frequency to match the higher frequency data the cable plant is designed to carry. This allows the tone to overcome competing data signals and aggressive low-frequency terminations of Ethernet switches. That means LAN cabling technicians can quickly zero in on the right cable during installations or troubleshooting.

Digital toning is especially helpful once the cable has been located as it displays cable wiremap and checks for shorts, opens and miswires.? The IntelliTone Pro 200 probe has an RJ45 input port and CableMap feature, allowing it to be plugged directly into a patch panel or wall port.? The benefit of this wiremap test is two-fold.? It eliminates the need for both a toner to a wiremapper, and provides 100% confirmation that the right cable has been located.

When to use analog
IntelliTone Pro’s SmartTone analog toning can be used on voice-grade cabling (Cat 3 and below), as well as coax, security/alarm, and speaker wiring.? These cables are optimized for lower frequency transmissions, and therefore are more easily isolated with a low-frequency tone.? It should also be used in areas with relatively low interference from electronic devices.? In high-interference environments, digital may still be a better choice.

SmartTone analog toning eliminates frustrating guesswork locating individual wire pairs during installations.? The SmartTone analog signal will change ‘songs’ each time the pair under test is shorted together.? This provides telecom technicians a decisive way to identify individual wire pairs before punching them down on a jack or a block, or when diagnosing voice transmission problems.

Locate and Isolate Cabling

Isolate Terminated Cables
The IntelliTone? Pro Toner uses the unique properties of?twisted pair cabling to create a balanced signal that minimizes the effect of signal bleed. The smart digital signal processing in the IntelliTone? Pro Probe clearly identifies this signal with audio and LED visual indicators, allowing you to rapidly isolate the correct cable from a bundle or on a patch panel. IntelliTone? eliminates hours of cable confusion—and you can count on getting it right the first time.

Isolate Individual Wire Pairs
With traditional?analog toners and probes, isolating individual wire pairs precisely can be almost impossible because of signal bleed between pairs.? As a result, wire pairs are often routed and terminated incorrectly the first time. Redoing incorrect terminations or pulling new wiring wastes tremendous amounts of time and money.? IntelliTone Pro’s SmartTone analog technology cuts out the guesswork and improves accuracy by providing definitive confirmation when the pair under test is located.? Just short the pair under test, and the audible tone will change its cadence.? The difference is dramatic.
